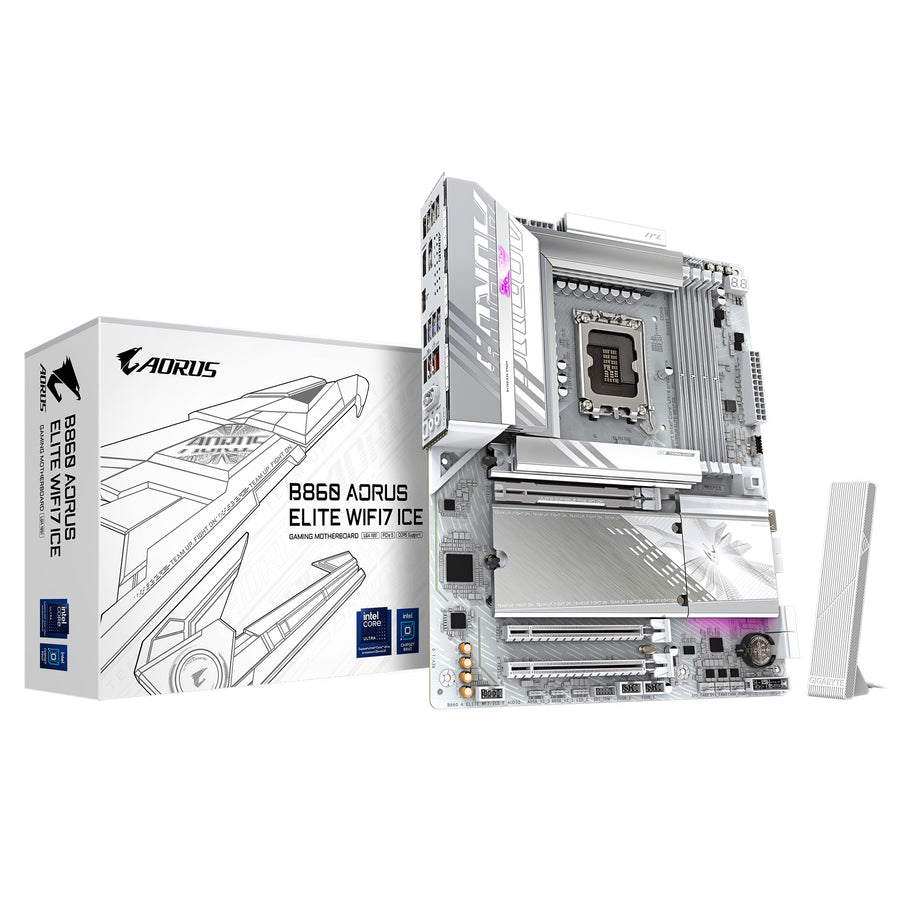

Gigabyte M/B B860 A ELITE WF7 ICE 1.0, Intel ® B860, 4 x DDR5 up to 256 GB, 2x HDMI, 3 x PCI Express x16, 3 x M.2, 4 x SATA, 6 x USB 3.2

CPU
LGA1851 socket: Support for Intel ® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU

Chipset
Intel ® B860 Express Chipset

Memory
Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, datarate (speed), and number of DRAM modules, please refer to 'Memory Support List' on GIGABYTE's website for more information.)

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version(Graphics specifications may vary depending on CPU support.)
Support for up to quad-display at the same time

LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0)

Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_1, PCIEX1_2)

Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU)
Chipset:
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB
CPU:
- 1 x USB4® USB Type-C® port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
