16 10/100/1000Mbps RJ45 Ports PoE/PoE+ Switch
PoE power budget is up to 192W, making it ideal for small to medium business surveillance system
Port Priority is able to guarantee the quality of sensitive application like video monitor
Intelligent power management can protect the switch from overload
QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV.
HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface 16 PoE+ 10/100/1000Mbps RJ45 Ports
2 Fiber Ports
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100-240V AC, 50/60 Hz
Backup Bandwidth 7.2 Gbps
PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port16
PoE Power Budget: 192W
Mac Address Table 8K
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
Mounting Rack Mountable
Max Power Consumption 18.73 W (220/50Hz. no PD connected)
217.22 W (220/50Hz. with 192W PD connected)
Max Heat Dissipation 63.89 BTU/h (no PD connected)
741.15 BTU/h (with 192W PD connected)
PERFORMANCE
Switching Capacity 36 Gbps
Packet Forwarding Rate 23.8 Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
Lorem ipsum dolor sit amet
Vivamus a placerat dolor. Proin ut vehicula mauris. Etiam sagittis augue ipsum. Aliquam vestibulum massa nulla, ullamcorper aliquam diam feugiat vel. Fusce porttitor ultrices ante, posuere vehicula lacus tempor eu. Sed et purus et massa mattis aliquet ac vel dolor. Pellentesque eros lectus, placerat nec finibus ac, lobortis eu risus.
Donec fringilla metus ligula, sit amet fermentum ex laoreet non
- Ribbed and double stitched collar and armholes
- High-density fabric for vivid print clarity
- Machine-wash safeSingle right rear button flap pocket
- Products are proudly printed in the United States
Curabitur egestas suscipit odio. Nam vitae aliquam dui
in laoreet elit. In posuere augue id velit placerat, vitae porttitor leo aliquet. Aenean non ligula sed lorem eleifend aliquam. Morbi posuere faucibus viverra. Proin ullamcorper, lorem lacinia cursus finibus.
Nullam at mi accumsan, fermentum turpis at, hendrerit tortor
Vivamus commodo magna rutrum ipsum convallis luctus. Maecenas sollicitudin tincidunt sem at consectetur. Sed ligula elit, sodales feugiat porttitor non, commodo in ipsum. Donec vehicula orci et pharetra laoreet. Donec feugiat, nibh ac ornare hendrerit, dui augue semper felis, a finibus dui felis quis magna. Curabitur a ligula purus. Suspendisse vestibulum lorem non tellus aliquet blandit.
Proin cursus sollicitudin scelerisque. Donec ultrices elit quis magna lobortis porttitor. Quisque et consectetur mauris. Sed facilisis malesuada ante eget blandit. Class aptent taciti sociosqu ad litora torquent per conubia nostra, per inceptos himenaeos. Pellentesque rutrum mattis ex ac sagittis. Nulla convallis euismod ipsum, a mollis sapien fringilla eget. Nam dignissim ornare nisi, in bibendum nibh auctor id.
Quisque dictum justo id velit dapibus, id mollis diam tincidunt. Donec luctus tincidunt ultrices. Sed condimentum ante accumsan, sagittis lorem quis, dictum enim. Nam et facilisis odio. Ut iaculis dui non interdum accumsan. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Fusce lacus sem, molestie non convallis nec, tristique a lacus. Proin eget lacus semper dui imperdiet accumsan. Morbi sagittis erat ac justo congue, a ornare tortor mollis. Aenean eu vulputate diam. Praesent suscipit ex non elit finibus ultricies.

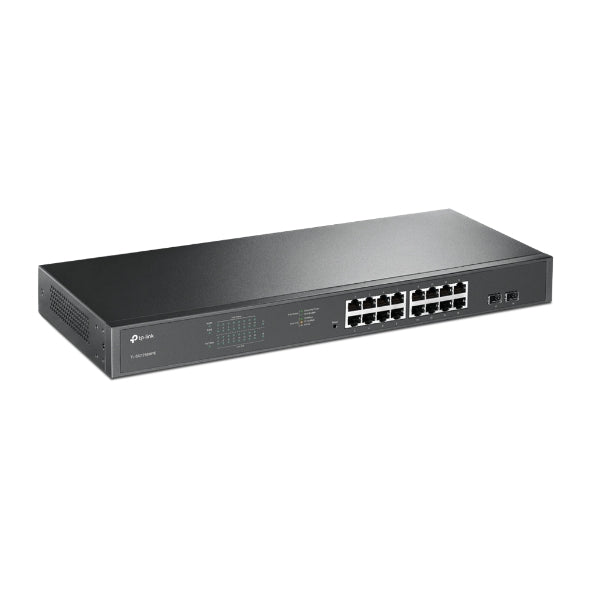

TP-Link TL-SG1218MPE 16-Port Gigabit PoE+ Easy Smart Switch, 16 Gigabit RJ45 Ports, 2 SFP Slots, 802.3at/af, 192W PoE Power, 1U 19-inch Rack-mountable
Regular price
$309.00
Sale
