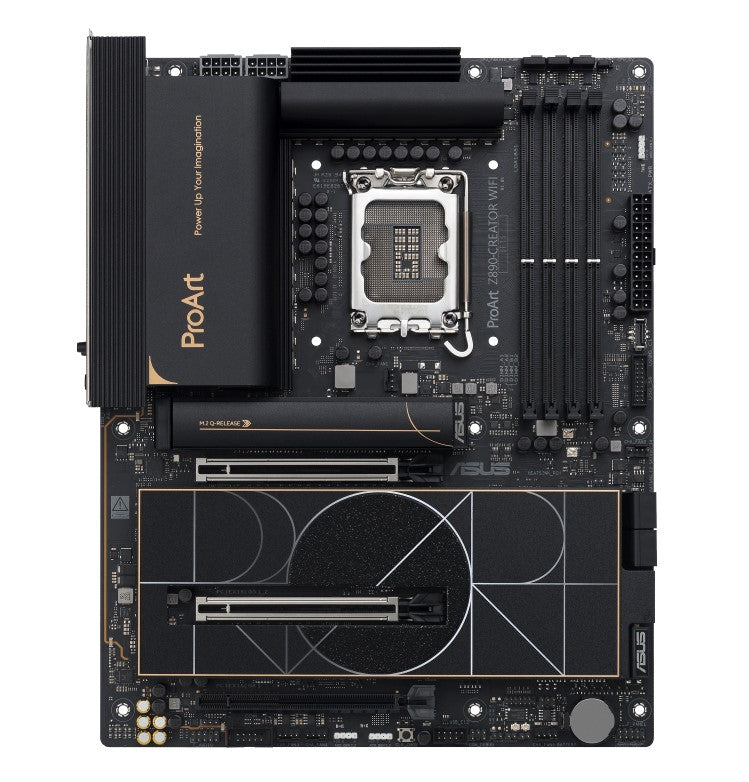

The ProArt Z890-CREATOR WIFI empowers creators of all levels by maximizing the performance of the latest Intel® Core™ Ultra Processor (Series 2) processors with 16+1+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual Thunderbolt™ 5 ports, 10G and 2.5G Ethernet, and WiFi 7.

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A subtly designed I/O cover provides a sleek and sophisticated look while concealing the premium connectors within.

CPU
Support Intel® Core™ Ultra Processors (Series 2), LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel® Z890 Chipset

Memory
4 x DIMM slots, max. 192GB, DDR5
Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture

1 x HDMI™ port**

2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***

1 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs****

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports 4K@60Hz as specified in HDMI 2.1

*** Supports up to 2 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors with DP in.

*** Supports up to 1 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors without DP in.

Intel® Core™ Ultra Processors (Series 2) *
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
Intel® Z890 Chipset
*1 x PCIe 4.0 x16 slot (supports x4 mode)
ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
** M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is operating, PCIe 4.0 x16 slot will be disabled.
Ethernet
1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Back Panel I/O Ports
2 x Thunderbolt™ 5 USB Type-C® ports
1 x Thunderbolt™ 4 USB Type-C® port
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI™ port
1 x Wi-Fi module1 x Marvell® AQtion 10Gb Ethernet port
1 x Intel® 2.5Gb Ethernet port
2 x Gold-plated audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headersPower Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s portsUSB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS button
1 x COM Port header
1 x CPU Over voltage jumper
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front System Panel header
1 x RTC Battery header
1 x Thermal Sensor header
